220 kV Transmission Line using Monopole – Jharkhand

220 kV Transmission Line from Existing 220 kV CTPS Switchyard to M/s SAIL, Bokaro Steel Plant (BSL), Bokaro using 29 Monopole Towers

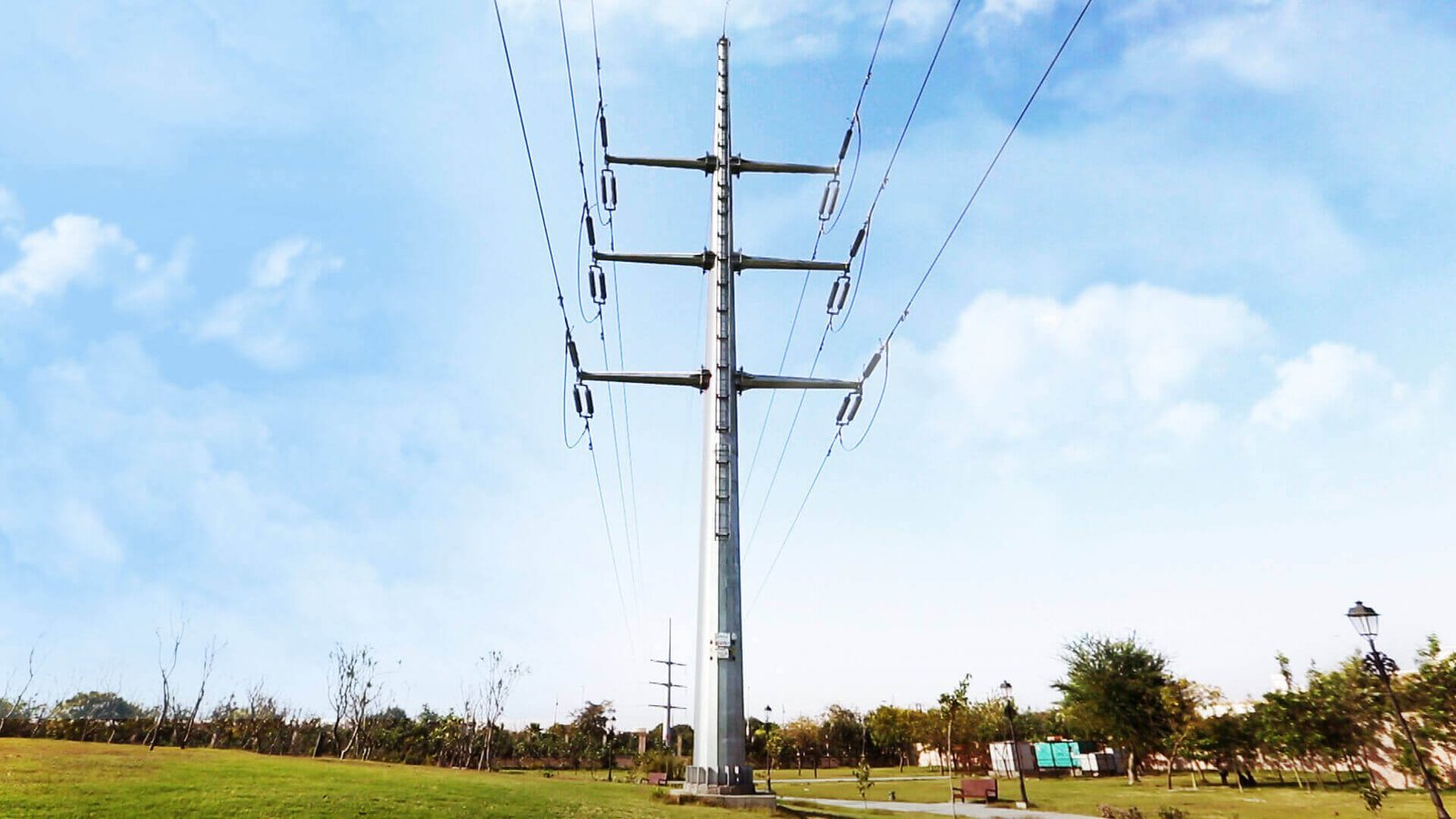

Stallion Power Infra Private Limited successfully executed the Survey, Foundation, Erection, Testing and Commissioning of 1 No. 220 kV Transmission Line from the existing 220 kV CTPS Switchyard to M/s Steel Authority of India Limited (SAIL), Bokaro Steel Plant (BSL), Bokaro, Jharkhand, utilizing 29 galvanized steel Monopole Towers. The project was undertaken to establish a reliable, efficient, and high-capacity transmission network for uninterrupted power supply to the Bokaro Steel Plant, one of India's largest integrated steel manufacturing facilities.

The project involved detailed route survey, foundation construction, monopole tower erection, conductor stringing, installation of insulators and hardware fittings, followed by comprehensive testing and commissioning activities. By adopting monopole technology, the transmission corridor was optimized to minimize Right-of-Way (ROW) requirements while ensuring structural stability, operational reliability, and enhanced aesthetics.

All works were executed in accordance with relevant IS standards, utility specifications, and stringent quality, safety, and environmental management practices, ensuring timely completion and dependable long-term performance of the transmission system.

Project Scope

• Detailed route survey and alignment of the 220 kV transmission line.
• Topographical survey and site investigation.
• Foundation design verification and construction for 29 Monopole Towers.
• Excavation, reinforcement, concreting, curing and backfilling of tower foundations.
• Erection and alignment of 29 galvanized steel Monopole Towers.
• Installation of cross-arms, insulator strings, hardware fittings and accessories.
• Conductor stringing, sagging, clipping and final tensioning.
• Installation of earthing and lightning protection systems.
• Mechanical and electrical inspection of the transmission line.
• Pre-commissioning testing including continuity, insulation and earthing tests.
• Final testing, energization and commissioning of the complete 220 kV transmission line.

Key Highlights

• Voltage Level: 220 kV
• Transmission System: 29 Galvanized Steel Monopole Towers
• Location: Bokaro, Jharkhand
• Source: Existing 220 kV CTPS Switchyard
• Destination: M/s SAIL, Bokaro Steel Plant (BSL)
• Execution: Survey, Foundation, Erection, Testing & Commissioning
• Technology: Compact Monopole Transmission Line with optimized Right-of-Way (ROW)
• Quality: Executed as per applicable IS Standards and utility specifications.
• Safety: Zero-compromise approach with strict adherence to HSE practices.
• Delivery: Successfully completed within the scheduled project timeline.
